DI201119 GETEC

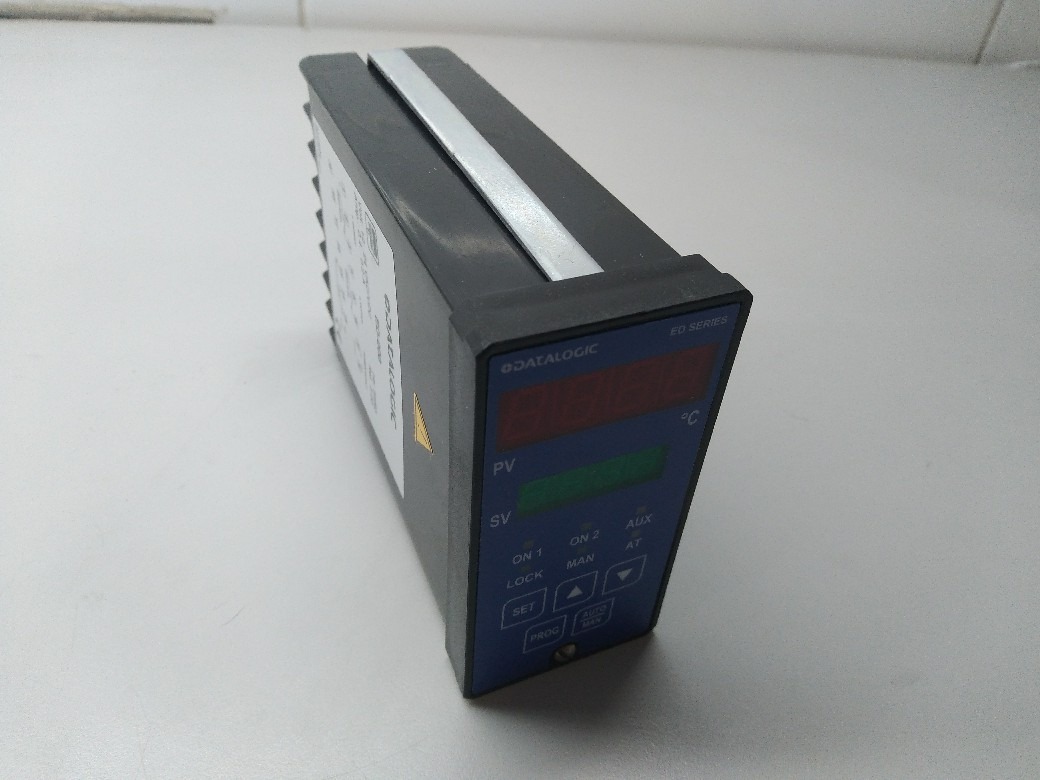

ED-000 Control de Temperatura 12-24 VDC AC

$280.487 IVA Incluido - Precio valido solo para compra web y retiro en tienda - Sujeto a confirmación - Foto referencial

Disponibilidad: Hay existencias

SKU: DI 1119 Categoría: Etiqueta:
Power Supply 12-24 Vac/Vdc ±10% version or 80-240 Vac ±10% version
Consumption 5 VA max.
Sensor input selectable between E, J, K, L, R, S, T thermocouples and Pt100W/0°C RTDs
Measurement scale selectable in °C or °F scales with lower and upper limits, refer to table 1




Precision

 thermocouple measurement ±0,4% f.s.
RTD measurement ±0,3% f.s.
temperature drift 0,01% f.s. / °C of ambient
temperature setting and indication ±1 digit
Data updating input, output and indication every 500 ms
Data retention non volatile eeprom memory
Keyboard correction indication from -99,9 to +99,9 °C/°F


1st point control action

 on/off or PID automatic or manual selection, maximum or minimum, with AT initial autotuning and ADT permanent

autoadaptive function
Proportional band 20°C (sel. from 1 to 999 °C/°F)
Integral time 120 sec. (sel. from 0 to 960 sec.)
Derivative time 30 sec. (sel. from 0 to 240 sec.)
Cycle time 12 sec. (sel. from 1 to 120 sec.)
On/off hysteresis ±1 °C (sel. from ±0,1 o ±99,9° C/°F)


1st point output type

 relay SPDT 250 Vac, 5 A version
trans. PNP 15 Vdc ±20% version
20 mA short-circuit protection
2nd/3rd point alarm action selectable alarm setting from-999 to +999 °C/°F respect to 1st point, or fixed point setting on selected scale, refer to table 2
2nd point output type relay SPDT 250 Vac, 5 A
3rd point output type relay SPST 250 Vac, 5 A
Auxiliary functions LFA Loop Failure Alert diagnostic function, digital filter with an average of 10 measures, SW program LOCK with 3 levels
Setting PROG, SET, UP, DOWN, AUTO/MAN push-buttons
Indicators 4 digit red display (10mm height), 4 digit green display (7mm height) for ED or

5 LED movement bar (ES), yellow ON1 LED, red ON2 LED, red AUX LED, green LOCK, green MAN LED, green AT LED
Connection terminal block with 15 screw contacts, electronic block extractable from front panel
Electric protection class 1


Mechanical protection

 IP54 – front panel
IP20 – housing
IP10 – contacts
Housing material ABS
Weight 400 g max.
Operating temperature -10 … +55°C
Storage temperature -20 … +65°C
Reference standard EN 61010-1
