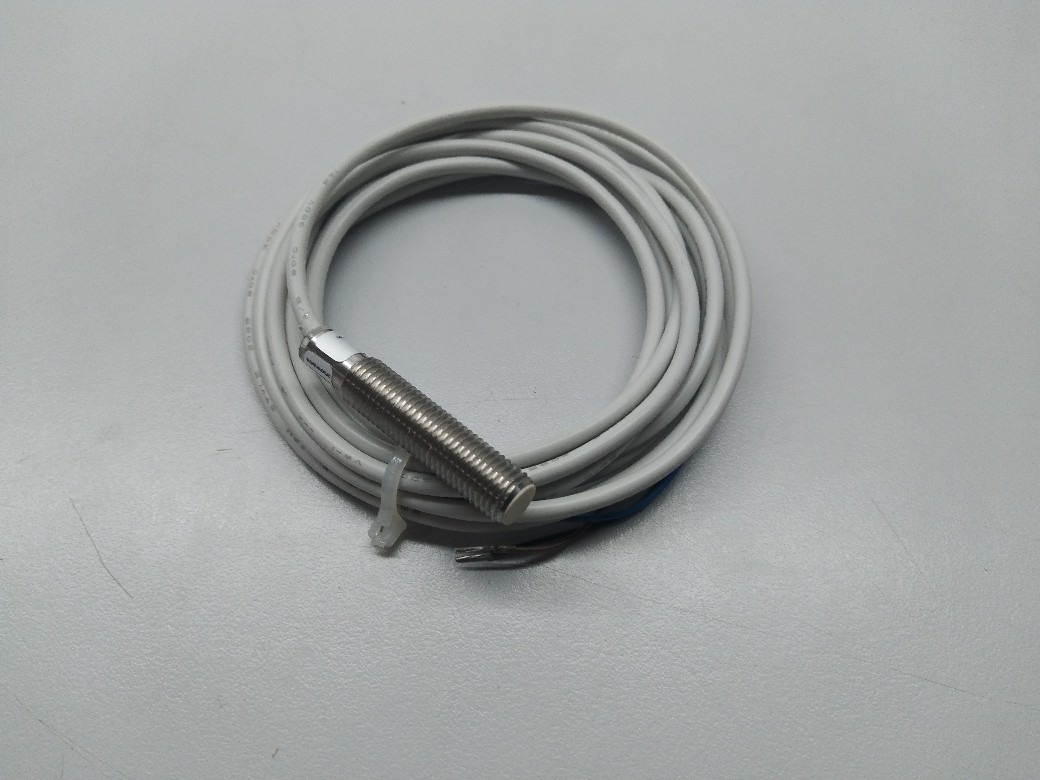

IS-08-M3-03 Sensor inductivo M8 NPN

Nominal Voltage 10-30 Vdc (-15/10%) 10-30 Vdc (-15/10%) 10-30 Vdc (-15/10%)
Residual Ripple < 10% < 10% < 10%
Hysteresis < 10% < 10% < 10%
Max. Output Current 200 mA 200 mA 200 mA
Min. Output Current — — —
Residual Current < 10 mA < 10 mA < 10 mA
Voltage Drop < 1,2 V (I=100mA) < 1,2 V (I=100mA) < 1,2 V (I=100mA)
Operation Led Yellow Yellow Yellow
Switching Frequency 1000 Hz 1000 Hz 1000 Hz
Start Up Delay < 50 ms < 50 ms < 50 ms
Repeatability < 3% < 3% < 3%
Short Circuit Protection Present (self-resetting) Present (self-resetting) Present (self-resetting)
Electric Protection Against polarity reversal
inductive loads
Against polarity reversal
inductive loads
Against polarity reversal
inductive loads
Temperature Limit (-25 … +70 °C) (-25 … +70 °C) (-25 … +70 °C)
Protection Degree IP69K IP69K IP69K
Cable Length — — —
Cable Section — — 3x 0,14 mm²
Housing Material Stainless-Steel Stainless-Steel Stainless-Steel
Weight – Cable Output — — 80 g
Weight – Connector Output 35g 55g —
