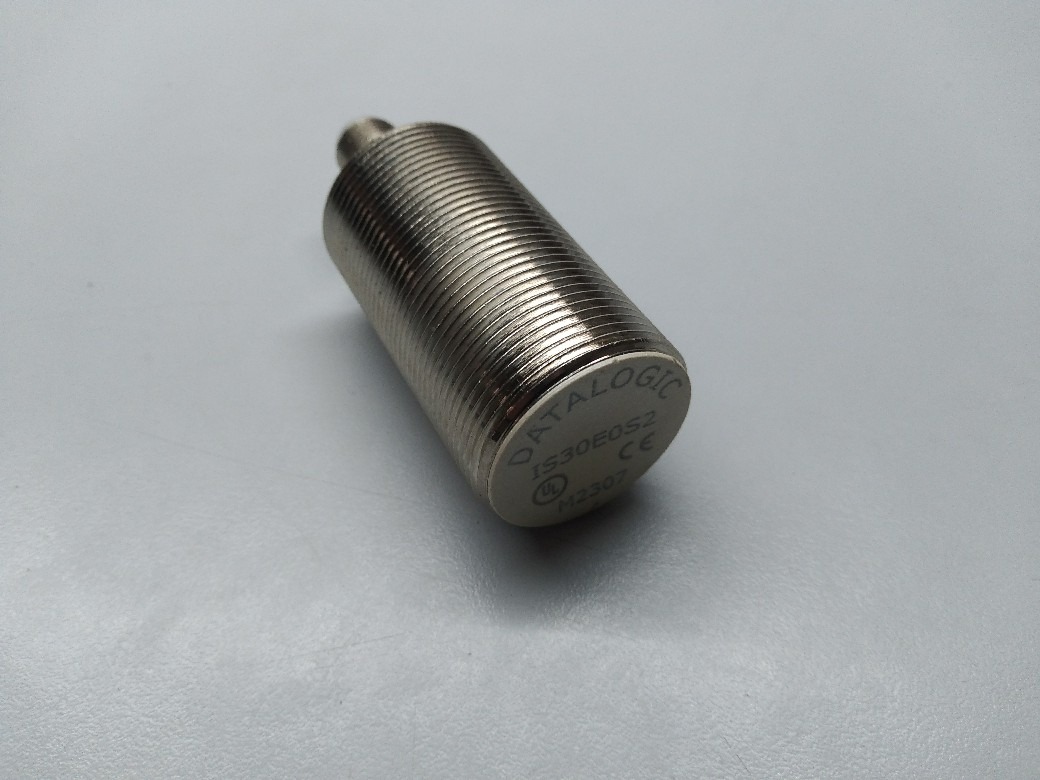

IS-30-E0-S2 Sensor 12-30 Vdc ISM05DK

Name: IS-30-E0-S2 Sensor 12-30 Vdc ISM05DK - GETEC
Brand: Datasensing
SKU: KI 1338
Price: 66856 CLP
Availability: InStock

$79.559 IVA Incluido - Precio valido solo para compra web y retiro en tienda - Sujeto a confirmación - Foto referencial

Disponibilidad: Hay existencias

NON-CONTACT DETECTION COST EFFECTIVE AND RELIABLE DETECTION OF ANY METAL PART

- Standard proximity M4, M5, M8, M12, M18, M30
- Double range (i.e. M12 4mm, M18 14mm, M30

20mm)

- Unshielded or shielded models for flush mounting
- Nickel brass or stainless steel short and long

housing

detergents

- Multi-voltage, Metal face, Weld field immune models
- NO/NC, NPN or PNP output and programmable

versions.

Nominal sensing distance	15mm
Operanting distance	0…12,1mm
Standard target	45x45mm FE360
Correction Factor	copper: 0,2…0,5 / aluminium: 0,3…0,5 / brass: 0,4…0,6 / stainelss steel: 0,7…0,9
Repeat Accuracy	< 3% (UB 24V Ta=23°C ±5°C)
Hysteresis	< 10%

Description	M30 standard flush mount
Functions	Proximity

Operating Voltage	10…30Vdc
No-Load supply current	≤ 10mA
Load current	200mA
Output voltage drop	≤ 1,2V @100mA
Max ripple content	≤ 10%
LED indicators	Yellow LED output state
Time delay before availability	≤ 75ms
Short-circuit protection	Yes
Reverse Polarity Protection	Yes
Emission	≥100kHz
Protection against inductive loads	Yes

Approvals

CE cULus

Supplied Accessories

2 nuts M30x1.5

Marca	Datasensing
