KI201414 GETEC

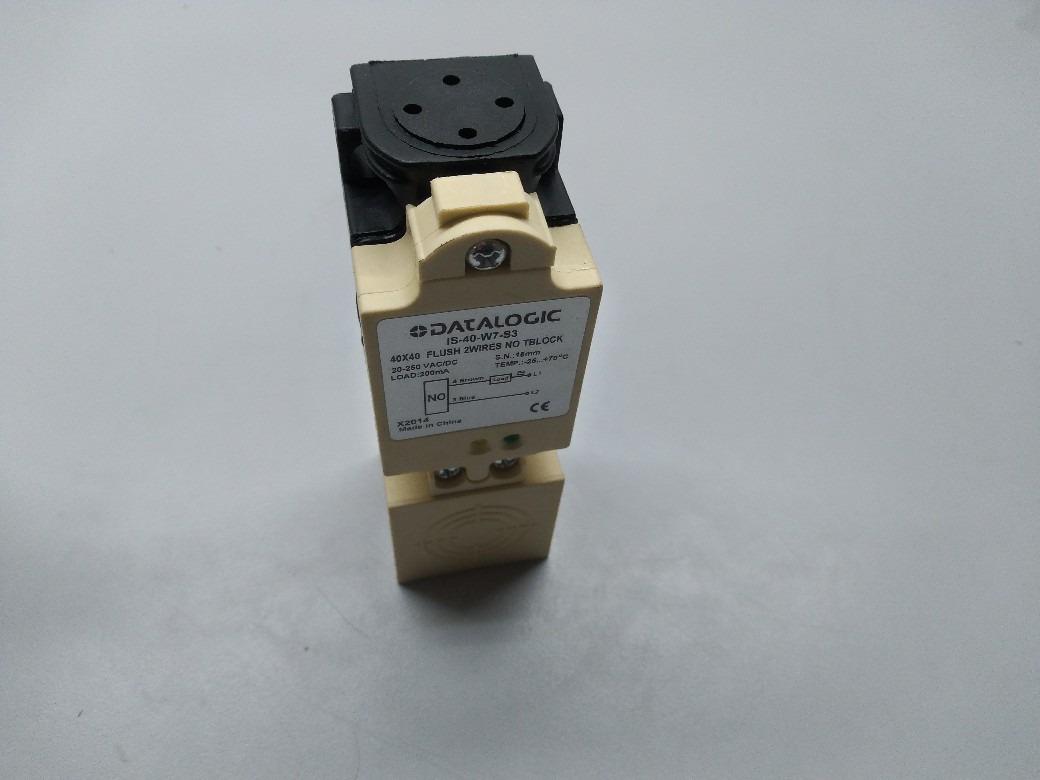

IS-40-W7-S3 Sensor 40x40mm AC/DC NO 2 hil15mm

$118.697 IVA Incluido - Precio valido solo para compra web y retiro en tienda - Sujeto a confirmación - Foto referencial

Disponibilidad: Hay existencias

NON-CONTACT DETECTION COST EFFECTIVE AND RELIABLE DETECTION OF ANY METAL PART

  • Standard proximity M4, M5, M8, M12, M18, M30
  • Double range (i.e. M12 4mm, M18 14mm, M30

    • 20mm)

  • Unshielded or shielded models for flush mounting
  • Nickel brass or stainless steel short and long

    • housing

  • Ecolab and Diversey certifications for industrial

    • detergents

  • Multi-voltage, Metal face, Weld field immune models
  • NO/NC, NPN or PNP output and programmable

    • versions.



SKU: KI 1414 Categoría: Etiqueta:

Detection properties

Nominal sensing distance 15mm
Operanting distance 0…12,1mm
Standard target 45x45mm FE360
Correction Factor copper: 0,4 / aluminium: 0,45 / brass: 0,5 / stainelss steel: 0,85
Repeat Accuracy < 1% (UB 24V Ta=23°C ±5°C)
Hysteresis < 15%

Application

Description Large block style no-flush mount
Functions Proximity

Outputs

Output type NPN/PNP
Output Function NO
Switching frequency 25Hz AC / 40Hz DC
Response time 20

Electrical data

Operating Voltage 20…250Vac/50…60Hz
No-Load supply current ≤ 2,5mA
Load current 200mA
Output voltage drop < 10Vac ; < 8Vdc
Max ripple content ≤ 10%
LED indicators Yellow LED output state
Short-circuit protection Yes
Reverse Polarity Protection Yes
Emission ≥100kHz
Protection against inductive loads Yes

Mechanical data

Mounting Shielded
Dimensions 40x41x118
Housing Material Plastic – PBT
Connections Terminal block
Active Head Material PBT
Material Plastic – PBT
Diameter/Dimension 40x41x118

Test/Approvals

Approvals CE

Generical Data

Dimensions 40x41x118mm
Operating Temperature -25°C…+70°C
Mechanical Protection IP67
