KI201399 GETEC

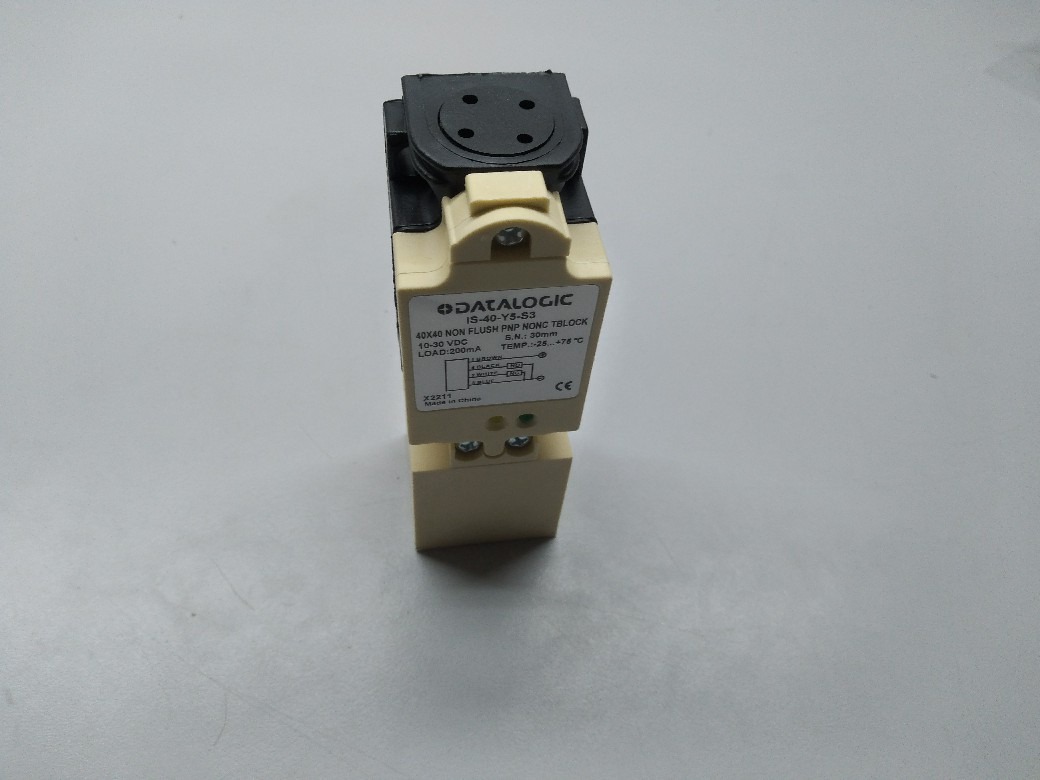

IS-40-Y5-S3 Sensor 30mm Sen. PNP NO+NC 40X40m

$88.640 IVA Incluido - Precio valido solo para compra web y retiro en tienda - Sujeto a confirmación - Foto referencial

Disponibilidad: Hay existencias

NON-CONTACT DETECTION COST EFFECTIVE AND RELIABLE DETECTION OF ANY METAL PART

  • Standard proximity M4, M5, M8, M12, M18, M30
  • Double range (i.e. M12 4mm, M18 14mm, M30

    • 20mm)

  • Unshielded or shielded models for flush mounting
  • Nickel brass or stainless steel short and long

    • housing

  • Ecolab and Diversey certifications for industrial

    • detergents

  • Multi-voltage, Metal face, Weld field immune models
  • NO/NC, NPN or PNP output and programmable

    • versions.



SKU: KI 1399 Categoría: Etiqueta:
Nominal sensing distance 30mm
Operanting distance 0…24,3mm
Standard target 90x90mm FE360
Correction Factor copper: 0,4 / aluminium: 0,45 / brass: 0,5 / stainelss steel: 0,85
Repeat Accuracy < 1% (UB 24V Ta=23°C ±5°C)
Hysteresis < 15%

Application

Description Large block style no-flush mount
Functions Proximity

Outputs

Output type PNP
Output Function NO+NC
Switching frequency 100Hz
Response time 5

Electrical data

Operating Voltage 10…30Vdc
No-Load supply current ≤ 10mA
Load current 200mA
Output voltage drop ≤ 1,5V @100mA
Max ripple content ≤ 10%
LED indicators Yellow LED output state
Short-circuit protection Yes
Reverse Polarity Protection Yes
Emission ≥100kHz
Protection against inductive loads Yes

Mechanical data

Mounting Unshielded
Dimensions 40x41x118
Housing Material Plastic – PBT
Connections Terminal block
Active Head Material PBT
Material Plastic – PBT
Diameter/Dimension 40x41x118

Test/Approvals

Approvals CE

Generical Data

Dimensions 40x41x118mm
Operating Temperature -25°C…+70°C
Mechanical Protection
