DI201579 GETEC

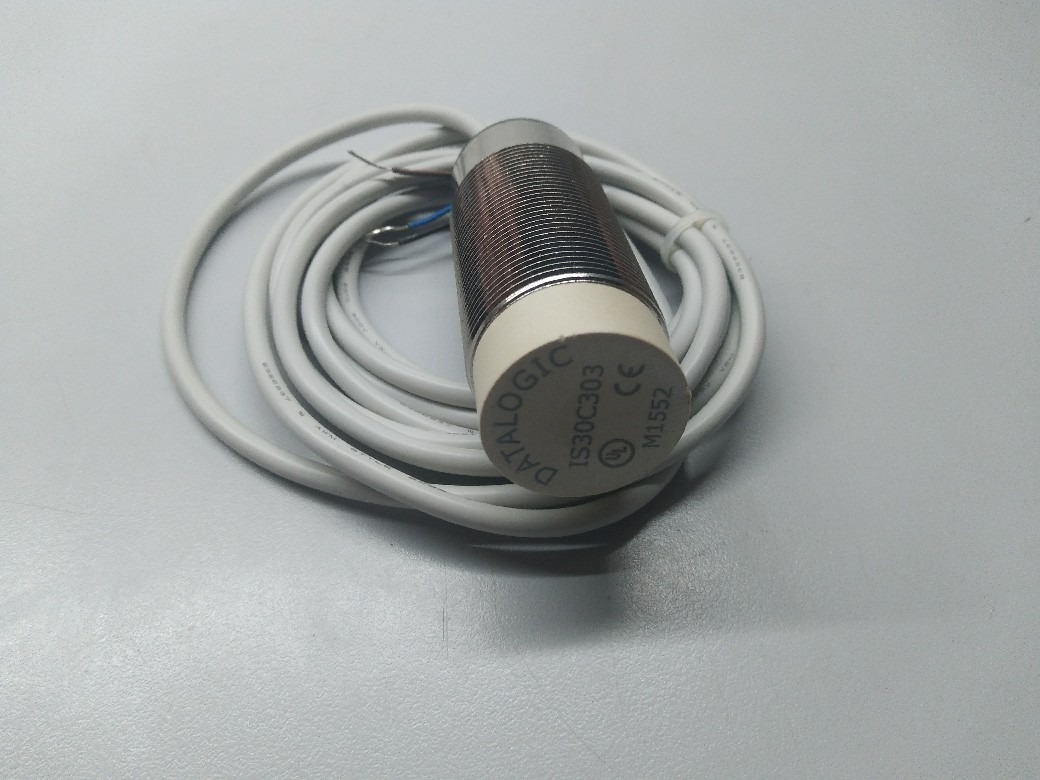

S-30-C3-03 Inductivo 30mm (SI30-CE15 NPN NO)

$59.219 IVA Incluido - Precio valido solo para compra web y retiro en tienda - Sujeto a confirmación - Foto referencial

Sin existencias

NON-CONTACT DETECTION COST EFFECTIVE AND RELIABLE DETECTION OF ANY METAL PART

  • Standard proximity M4, M5, M8, M12, M18, M30
  • Double range (i.e. M12 4mm, M18 14mm, M30

    • 20mm)

  • Unshielded or shielded models for flush mounting
  • Nickel brass or stainless steel short and long

    • housing

  • Ecolab and Diversey certifications for industrial

    • detergents

  • Multi-voltage, Metal face, Weld field immune models
  • NO/NC, NPN or PNP output and programmable

    • versions.



SKU: DI 1579 Categoría: Etiqueta:

TECHNICAL FEATURES

Detection properties

Nominal sensing distance 15mm
Operanting distance 0…12,1mm
Standard target 45x45mm FE360
Correction Factor copper: 0,4…0,5 / aluminium: 0,4…0,6 / brass: 0,5…0,7 / stainelss steel: 0,7…1,05
Repeat Accuracy < 3% (UB 24V Ta=23°C ±5°C)
Hysteresis < 10%

Application

Description M30 standard no-flush mount
Functions Proximity

Outputs

Output type NPN
Output Function NO
Switching frequency 300Hz
Response time 1,7

Electrical data

Operating Voltage 10…30Vdc
No-Load supply current ≤ 10mA
Load current 200mA
Output voltage drop ≤ 1,8V @100mA
Max ripple content ≤ 10%
LED indicators Yellow LED output state
Time delay before availability ≤ 50ms
Short-circuit protection Yes
Reverse Polarity Protection Yes
Emission ≥100kHz
Protection against inductive loads Yes

Mechanical data

Mounting Unshielded
Dimensions Ø30×81
Housing Material Nickel-plated brass
Connections 2m PVC Cable
Active Head Material LCP
Tightening torque 40Nm
Material Nickel-plated brass
Diameter/Dimension M30

Test/Approvals

Approvals CE cULus ECOLAB DIVERSEY

Accessories

Supplied Accessories 2 nuts M30x1.5

Generical Data

Dimensions Ø30 / L = 81mm
Operating Temperature -25°C…+70°C
Mechanical Protection IP67
