DI201653 GETEC

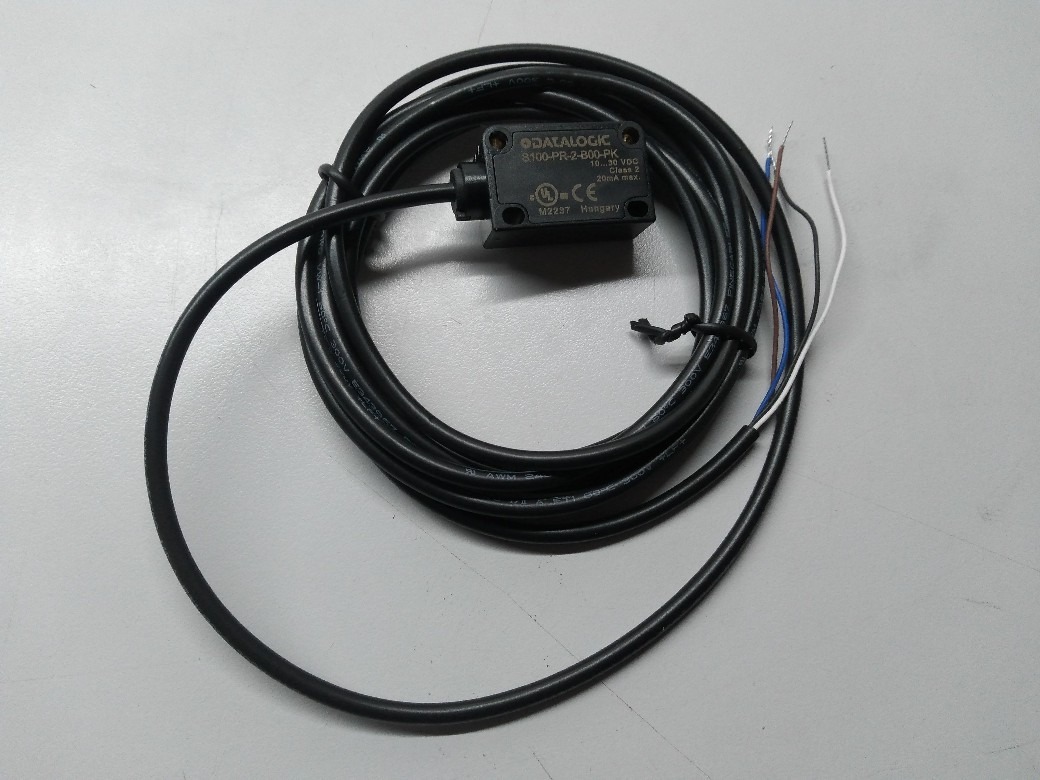

S100-PR-2-B00-PK Sensor Infrarojo

$78.764 IVA Incluido - Precio valido solo para compra web y retiro en tienda - Sujeto a confirmación - Foto referencial

Disponibilidad: Hay existencias

THE UNIVERSAL MINIATURE PHOTOELECTRIC SENSORS

  • Two threaded front mounting holes
  • Two slotted rear mounting holes
  • Anti-tampering sensor (no adjustment)
  • High speed high resolution RGB contrast sensor available
  • Transparent object detection
  • M8 connector and cable models
  • PNP or NPN models with Light/Dark selection by wire
  • Plastic housing, IP67 mechanical protection
  • IO-Link COM2 communication protocol
  • IO-Link V1.1.2 version
  • IO-Link extended parametrization for monitoring and maintenance



SKU: DI 1653 Categoría: Etiqueta:

Detection properties

Nominal sensing distance 2m
Sensitivity adjustment n/a

Application

Function Principle Polarized retroreflective
Description Miniature universal multi-holes
Optic position Radial 90°
Functions Polarized retroreflective

Outputs

Output type PNP L/D selectable
Output Function L/D selectable
Switching frequency 500Hz
Response time 1ms

Electrical data

Operating Voltage 10…30VDC
No-Load supply current ≤ 30mA
Load current ≤100mA
Output voltage drop ≤2V@Iload=100mA
LED indicators Yellow (status output)
Short-circuit protection YES
Reverse Polarity Protection Yes
Emission LED Red
Interference to external light according to EN 60947-5-2 : 2020
Impulsive Overvoltage Protection Yes
Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
Contact resistance 500 Vac 1 min., between electronics and housing

Mechanical data

Dimensions 12x32x20
Housing Material ABS
Connections 2m cable
Active Head Material PMMA
Storage temperature – 25°C…+70°C
Material
Diameter/Dimension Cubic

Test/Approvals

Approvals CE cULus
Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)

Generical Data

Dimensions 12x32x20
Operating Temperature – 25°C…+ 55°C (Without freeze)
Mechanical Protection IP67
