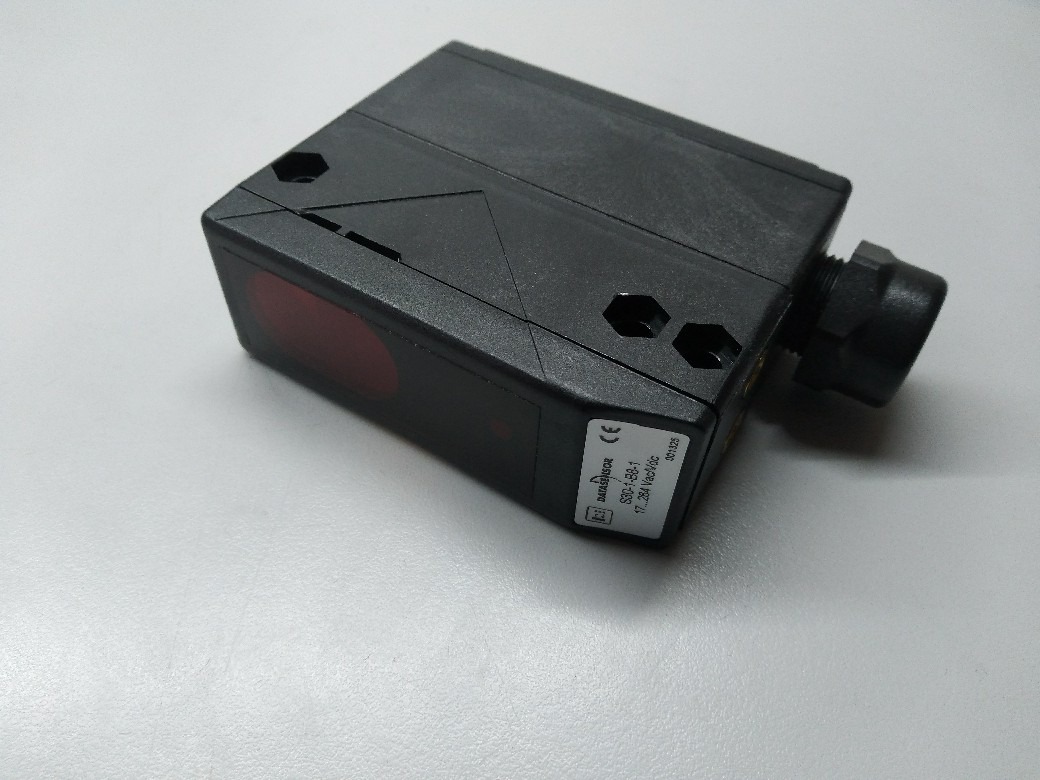

S30-1-B8-1 Sensor Retroreflex Polarizado

TECHNICAL DATA DETECTION
Power supply: ……………………………………….. 10 … 30 Vdc, reverse polarity protection
17 … 264 Vac/Vdc (free voltage vers.)
Consumption: ……………………………………….. 40 mA max. (B, C, F, G vers. in d.c.)
70 mA max. (M in d.c. vers.)
60 mA max. (B, C, F, G free voltage vers.)
90mA max. (M free voltage vers.)
Light emission: ……………………………………… infrared LED 880 nm
red LED 660 nm (B vers.)
Diffuse proximity operating distance: …….. 0.05 … 2 m
Background suppression op. distance: ….. 0.2 … 1.1 m
Polarised retroreflex operating distance: .. 0.1 … 8 m (on R2)
Through beam operating distance: ………… 0 … 50 m
Setting: …………………………………………………. sensitivity trimmer
distance adjustment screw (M vers.)
Indicators: …………………………………………….. two red OUTPUT LEDs (one for M vers.)
green STABILITY LED
Output type: ………………………………………….. NPN and PNP, open collector (d.c. vers.)
relay SPDT (free voltage vers.)
Saturation voltage: ………………………………… 1.5 V max. (d.c. vers.)
Output current: ……………………………………… 200 mA max. (d.c. vers.), short-circuit prot.
3 A max. resistive load (free voltage vers.)
Response time: ………………………………………1 ms max. (d.c. vers.)
20 ms max. (free voltage vers.)
Switching frequency: …………………………….. 500 Hz max. (d.c. vers.)
10 Hz max.(free voltage vers.)
Timing function: ……………………………………. normal, ON-delay, OFF-delay, ON/OFFdelay, one-shot all adjustable with trimmer
from 0.02 to 12 sec.
Operating mode: …………………………………….dark/light selectable with deviator
Auxiliary functions: ……………………………….. alarm output PNP 200 mA (d.c. vers.)
test input (d.c. vers.)
Connection: ………………………………………….. 4-pole M12 connector
terminal block
gland for cables with 8 to 12 mm diameter
Electrical protection: …………………………….. class 1 (free voltage vers.)
class 2 (d.c. vers.)
Mechanical protection: ………………………….. IP67
Housing material: ………………………………….. glass-fibre reinforced polycarbonate
Lens material: ………………………………………. PMMA plastic
Weight: …………………………………………………. 165 g max.
Operating temperature: …………………………. -25 … +55°C
Storage temperature: …………………………….. -25 … +70°C
Reference standard: ………………………………. EN 60947-5-
