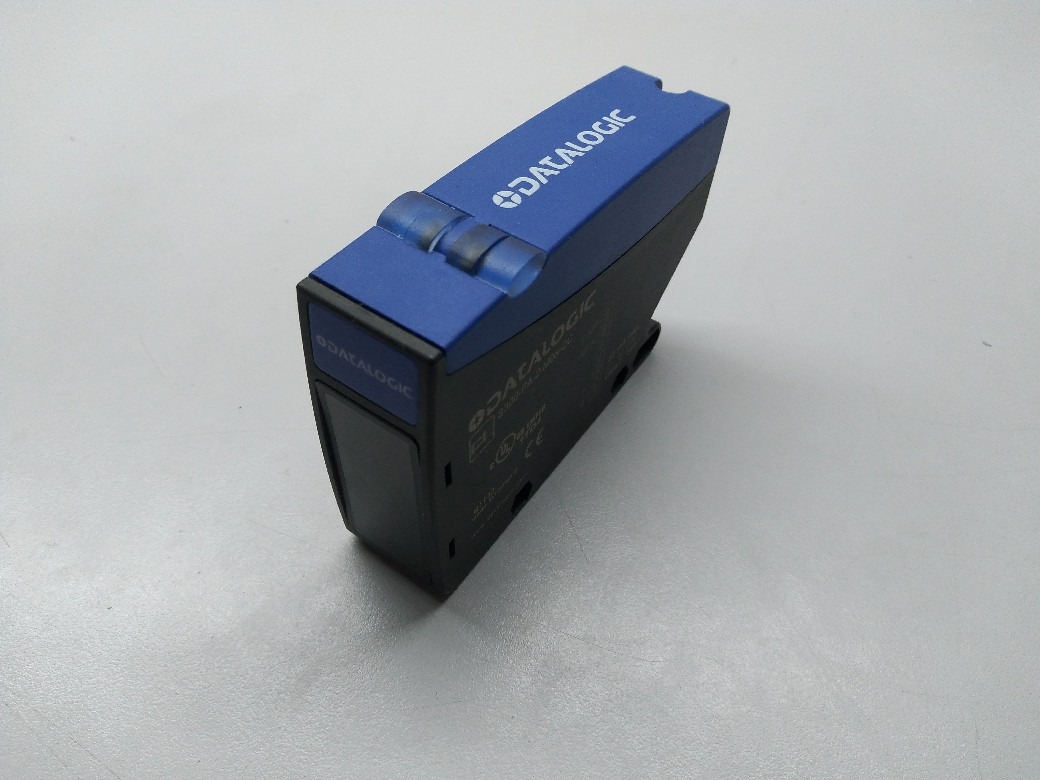

| PH | S300 |
| MODELO | S300-PA-2-M06-OC |
| Nº DE PEDIDO | 951451470 |
| SERIE | S300 |
| Función óptica | Supresión de fondo |
| Emisión de luz | LED – Infrarrojos |
| Rango de detección máximo | d) 1< … ≤ 10 m |
| Altura controlada | NULO |
| Ajuste | Cortapatillas |
| fuente de alimentación | 10… 30 VCC |
| Tipo de salida | NPN/PNP |
| Tipo de conexión | Cable de 2 m |
| Formulario de caso | Maxi compacto |
| Material del caso | plástico |
| Protección | IP67 |
| TeChnICAL DATA | |
| Power supply | 12 … 30 Vdc (mod. S300…2)
24…240 Vac/24…60 Vdc (mod. S300…1) |
| ripple | 10% max. |
| consumption (output current excluded) | 35 ma max. (mod. S300…2)
3 Va max. (mod. S300…1) |
|
light emission |
red Led 660 nm (mod. S300…b) Ir Led 940 nm (mod. S300…C)
Ir Led 880 nm (mod. S300…a/g/M) |
|
Setting |
sensitivity trimmer (mod. S300…a/b/C/f), darK/LIghT dip-switch (mod. S300…a/b/C/f/M) 7-turns distance adjustment trimmer (mod. S300…M)
dip-switch mode on delay/off delay/on-off delay/single pulse (one-ShoT) (mod. S300…x06) timing trimmer (mod. S300…x06) |
| Indicators | yellow ouTPuT Led (excl. mod. S300…g) green STabILITy Led, PoWer Led (mod. S300…g) |
| output | PnP or nPn open collector (mod. S300…2); electromechanical SPdT 250 Vac/30 Vdc (mod. S300…1) |
| output current | 100 ma (mod. S300…2) 3 a max. (mod. S300…1) |
| Saturation voltage | 2,4 V max. |
|
response time |
1 ms (mod. S300..2-a/b/C/M) 2 ms (mod. S300…2-f/g)
25 ms (mod. S300…1) |
|
Switching frequency |
500 hz (mod. S300..2-a/b/C/M) 250 hz (mod. S300…2-f/g) 20 hz max. (mod. S300…1) |
| connection | terminal block |
| Dielectric strength | 500 Vac, 1 min between electronics and housing |
| Insulating resistance | >20 MΩ, 500 Vdc between electronics and housing |
| electrical protection | class 2 (mod. S300…2) |
| mechanical protection | IP67 (IeC/en60529) |
| Ambient light rejection | according to en 60947-5-2 |
| Vibrations | 0,5 mm amplitude, 10 … 55 hz frequency, for every axis (en60068-2-6) |
| Shock resistance | 11 ms (30 g) 6 shock for every axis (en60068-2-27) |
| Housing material | PbT 30% glass fiber-reiforced |
| lens material | frontal window and lens in PC |
| operating temperature | -25 … 55 °C |
| Storage temperature | -25 … 70 °C |
| Weight | 120 g (mod. S300…2), 130 g (mod. S300…1) |
