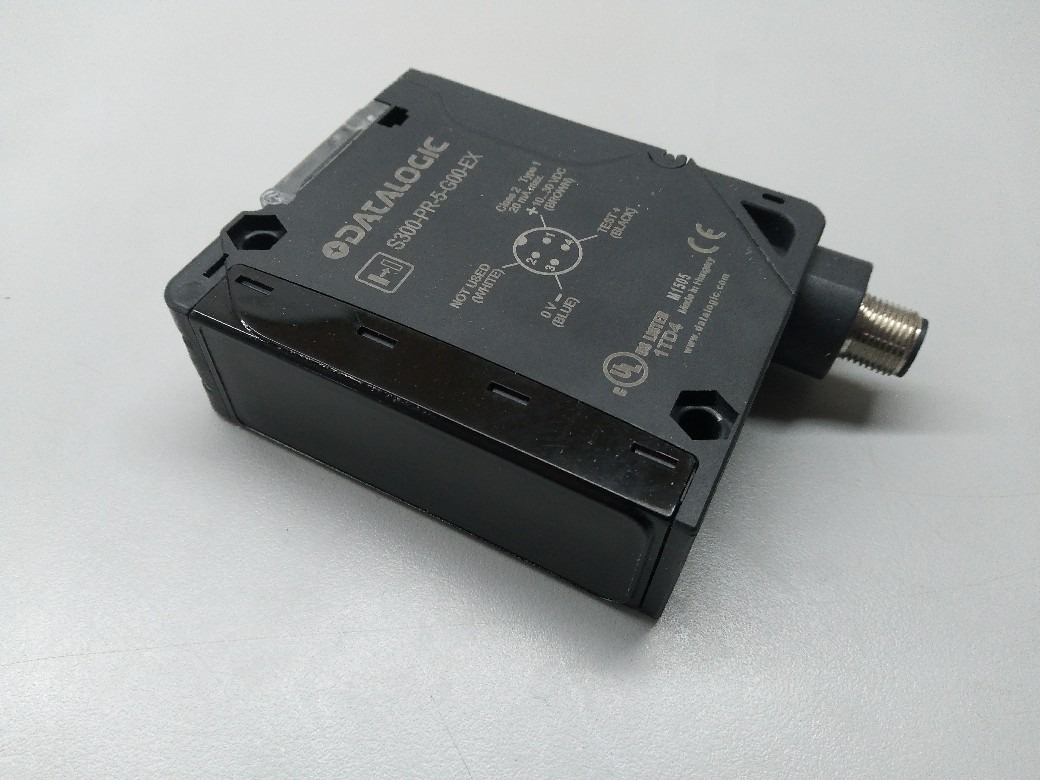

Sensor de barreraS300-PR-5-G00-EX Emisor Barrera 60m
$167.075 IVA Incluido - Precio valido solo para compra web y retiro en tienda - Sujeto a confirmación - Foto referencial
Sin existencias
HEAVY DUTY SENSOR FOR OUTDOOR APPLICATIONS AND HARSH ENVIRONMENTS
- Industrial plastic housing with IP67 mechanical protection
- Defogging system function
- Double independent timing functions with double time scale from 0-2s or 0-10s, One-Delay, Off Delay, ONE SHOT
| Nominal sensing distance |
60m |
| Sensitivity adjustment |
n/a |
| Function Principle |
Through beam emitter |
| Description |
Large case vertical mount |
| Optic position |
Radial 90° |
| Functions |
Through beam emitter |
| Output type |
n/a |
| Switching frequency |
500Hz |
| Response time |
n/a |
| Operating Voltage |
12…30VDC |
| No-Load supply current |
≤ 20mA |
| Load current |
≤100mA |
| Output voltage drop |
≤ 2,4V |
| LED indicators |
Green (PowerON) |
| Short-circuit protection |
YES |
| Reverse Polarity Protection |
Yes |
| Emission |
LED Infrared |
| Interference to external light |
according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection |
Yes |
| Insulation resistance |
>20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance |
500 Vac 1 min., between electronics and housing |
| Dimensions |
25x85x70 |
| Housing Material |
PBT Fiber Glass reinforced |
| Connections |
M12 plug |
| Active Head Material |
PMMA |
| Storage temperature |
– 40°C…+70°C |
| Material |
Plastic – PBT / PC |
| Diameter/Dimension |
Cubic |
| Approvals |
CE cULus |
| Shocks and vibrations |
0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| Dimensions |
25x85x70 |
| Operating Temperature |
– 40°C…+ 55°C |
| Mechanical Protection |
IP67 |
