S108 GETEC

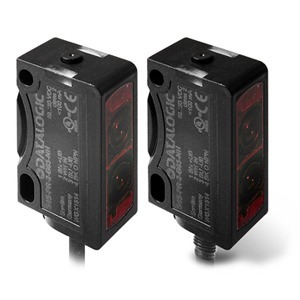

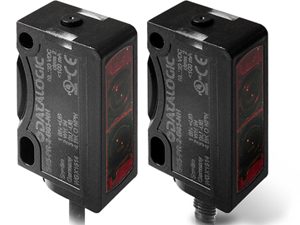

S45-PR-2-T53-NH Sensor transparencia

$340.722 IVA Incluido - Precio valido solo para compra web y retiro en tienda - Sujeto a confirmación - Foto referencial

Disponibilidad: Hay existencias

HIGH PERFORMANCE EUROPEAN STYLE MINIATURE SENSOR ALL-IN-ONE FAMILY

  • Red LED and Laser emissions
  • Precise risk free laser class 1 emission
  • Diffused LED proximity 800mm
  • Background Suppression 400mm
  • Retroreflective Class 1 Laser 15m/Red LED 7m
  • Through beam Class 1 Laser 20m/Red LED 15m
  • IP69K housing
  • 2m Cable or metal M8 4 pole version
  • PNP or NPN output with remote teach in input
  • High speed RGB and white emission contrast sensor
  • High precision distance sensor up to 200 mm



SKU: DI 1695 Categoría: Etiqueta:

TECHNICAL FEATURES

Detection properties

Nominal sensing distance 2m
Sensitivity adjustment Teach-in

Application

Function Principle Polarized retroreflective for clear object
Description Miniature european style rear holes
Optic position Radial 90°
Functions Polarized retroreflective for clear object

Outputs

Output type NPN L/D Selectable
Output Function L/D Selectable
Response time 0,5

Electrical data

Operating Voltage 10…30VDC
No-Load supply current ≤ 30mA
Load current ≤100mA
Output voltage drop ≤2V@Iload=100mA
LED indicators Green (PowerON) Yellow (status output)
Short-circuit protection YES
Reverse Polarity Protection Yes
Emission LED Red (632 nm)
Interference to external light according to EN 60947-5-2 : 2020
Impulsive Overvoltage Protection Yes
Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
Contact resistance 500 Vac 1 min., between electronics and housing

Mechanical data

Dimensions 12x34x20
Housing Material ABS(Housing), PMMA (Optics)
Connections 2m cable
Active Head Material PMMA
Storage temperature – 25°C…+70°C
Material Plastic ABS / PMMA
Diameter/Dimension cubic

Test/Approvals

Approvals CE cULus
Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)

Generical Data

Dimensions 12x34x20
Operating Temperature – 25°C…+ 55°C (Without freeze)
Mechanical Protection IP67 & IP69K
