TECHNICAL FEATURES
Detection properties
| Nominal sensing distance | 100mm | |
| Sensitivity adjustment | n/a | |
Application
| Function Principle | Diffuse reflection (medium distance, ≤600mm) | |

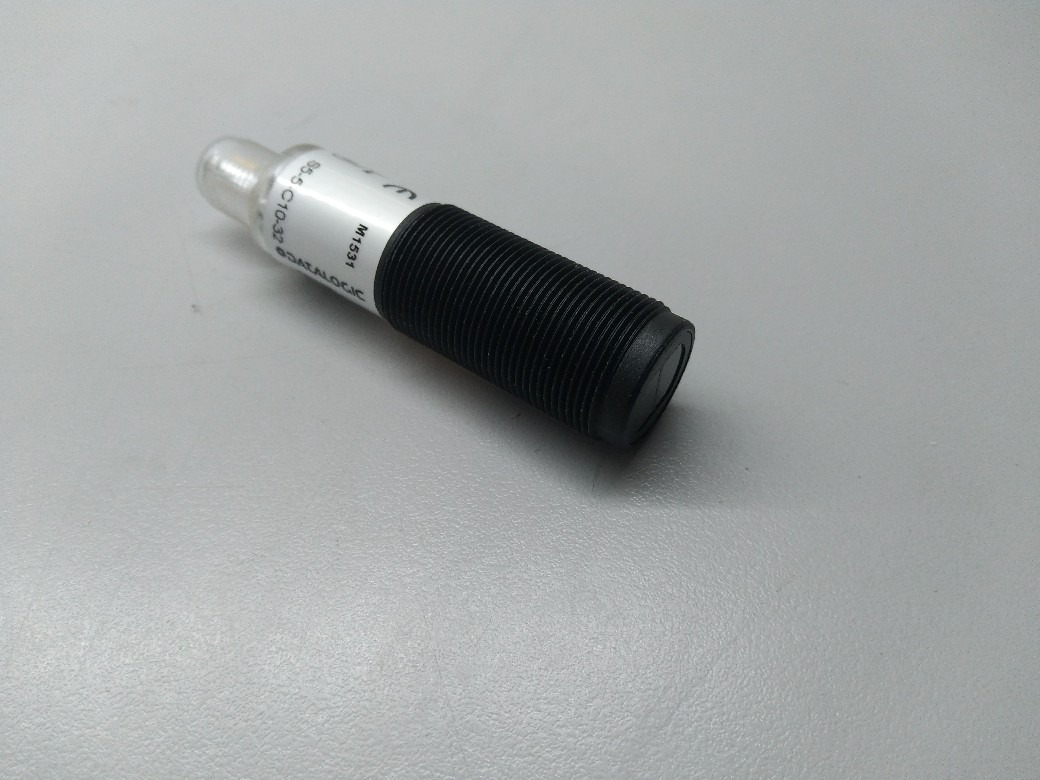

| Description | Tubular M18 – axial optic | |
| Functions | Diffuse beam | |
Outputs
| Output type | NPN/PNP – Dark/Light sel. | |
| Response time | 1 | |
Electrical data
| Operating Voltage | 10…30VDC | |
| LED indicators | Green (powerON) | |
| Time delay before availability | ≤200ms | |
| Emission | LED Infrared | |
Mechanical data
| Dimensions | Ø18×67 | |
| Connections | M12 plug | |
| Material | Plastic ABS / PMMA | |
Test/Approvals
| EMC compatibility | EN 60947-5-2 | |
Generical Data
| Dimensions | Ø18×67 | |
| Operating Temperature | – 15°C…+ 55°C (Without freeze) | |
