TECHNICAL FEATURES
Detection properties
| Nominal sensing distance | 18m | |
| Sensitivity adjustment | n/a | |
Application
| Function Principle | Through beam emitter | |

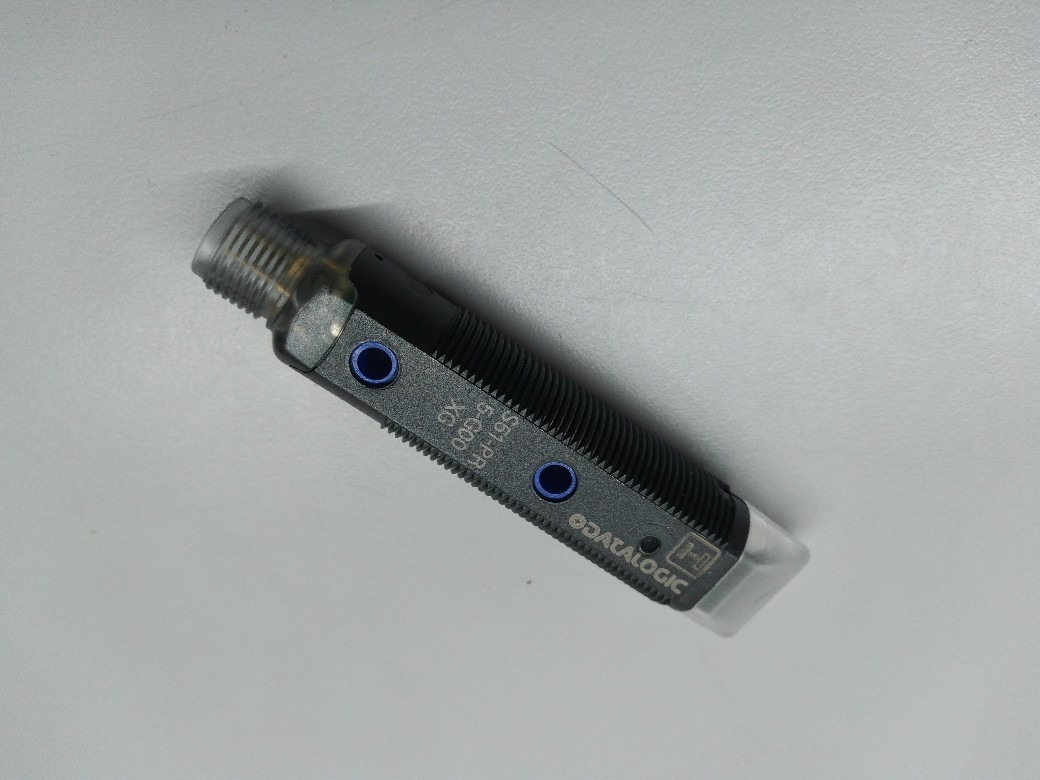

| Description | Tubular M18 – radial optic | |
| Functions | Through beam emitter | |
Outputs
| Output type | n/a | |
| Response time | n/a | |
Electrical data
| Operating Voltage | 10…30VDC | |
| No-Load supply current | ≤ 35mA | |
| Output voltage drop | ≤2V@Iload=100mA | |
| Short-circuit protection | YES | |
| Reverse Polarity Protection | Yes | |
| Emission | LED Infrared | |
| Interference to external light | according to EN 60947-5-2 : 2020 | |
| Impulsive Overvoltage Protection | Yes | |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing | |
| Contact resistance | 500 Vac 1 min., between electronics and housing | |
Mechanical data
| Dimensions | Ø18×69 | |
| Housing Material | Plastic PBT / PMMA | |
| Connections | M12 plug | |
| Active Head Material | PMMA | |
| Storage temperature | – 25°C…+70°C | |
| Material | ||
| Diameter/Dimension | M18 | |
Test/Approvals
| Approvals | CE cULus | |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) | |
Accessories
| Supplied Accessories | nuts M18 x 1 | |
Generical Data
| Dimensions | M18 x 1 /L=69 | |
| Mechanical Protection | IP67 | |
