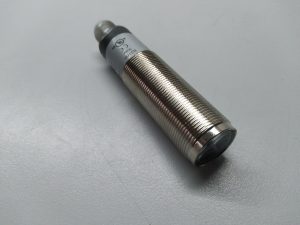

S5N-MA-5-C01-PP dif-prox pnp no-nc M12

$95.990 IVA Incluido - Precio valido solo para compra web y retiro en tienda - Sujeto a confirmación - Foto referencial

Disponibilidad: Hay existencias

S5N-MA-5-C01-PP

EXTENDED RANGE OF STANDARD «ONE FOR ALL» PHOTOELECTRIC TUBULAR M18 SENSORS

  • All optic functions
  • Improved EMI immunity
  • Improved ambient light immunity
  • Improved laser safety level
  • M18 flat plastic with universal mounting
  • Short plastic housing models
  • Available in M18 metal housing
  • Stainless steel housing models
  • Axial or radial optics, cable or connector
  • Standard 4-wire NO-NC NPN or PNP output
  • M12 pigtail models available
  • IO-Link connectivity V1.1 with double channel



SKU: DI 1681 Categoría: Etiqueta:
Nominal sensing distance 700mm
Sensitivity adjustment Trimmer

Application

Function Principle Diffuse beam
Notes white target Kodak 90% 100 x 100mm
Description Tubular M18 – axial optic
Optic position axial
Functions Diffuse beam

Outputs

Output type PNP NO+NC
Output Function NO+NC
Response time 500µs

Electrical data

Operating Voltage 10…30VDC
No-Load supply current ≤ 35 mA
Load current ≤100mA
Leakage current ≤10μA
Output voltage drop ≤2V@Iload=100mA
LED indicators yellow OUTPUT LED, green STABILITY LED
Short-circuit protection YES
Reverse Polarity Protection Yes
Emission LED Infrared
Interference to external light according to EN 60947-5-2 : 2020
Impulsive Overvoltage Protection Yes
Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
Contact resistance 500 Vac 1 min., between electronics and housing

Mechanical data

Dimensions Ø18×67
Housing Material Metal – Nickel plated brass
Connections M12 plug
Active Head Material PMMA
Storage temperature – 25°C…+70°C
Material
Diameter/Dimension M18

Test/Approvals

Approvals CE cULus
EMC compatibility EN 60947-5-2
Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)

Accessories

Supplied Accessories nuts M18 x 1

Generical Data

Dimensions M18x67
Operating Temperature – 25°C…+ 55°C (Without freeze)
Mechanical Protection IP67
