DI201055 GETEC

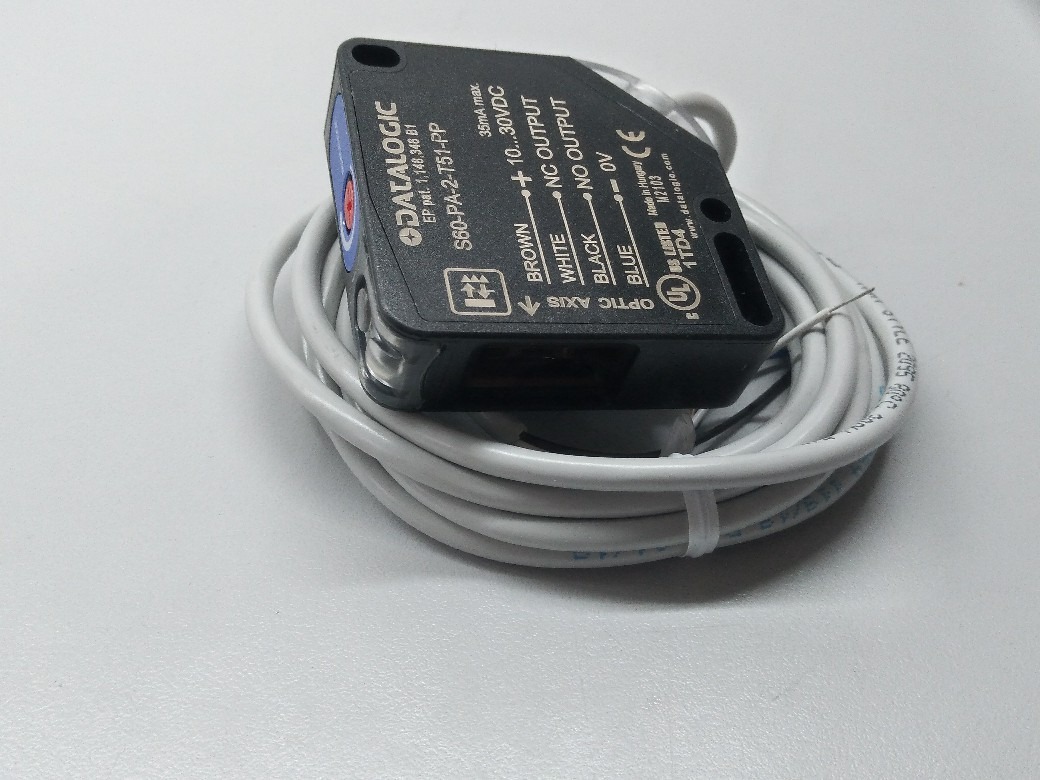

S60-PA-2-T51-PP Para transparencias

$150.646 IVA Incluido - Precio valido solo para compra web y retiro en tienda - Sujeto a confirmación - Foto referencial

Disponibilidad: Hay existencias

EXTENDED RANGE OF STANDARD «ONE FOR ALL» PHOTOELECTRIC COMPACT SENSORS

  • Complete range of optic functions, basic, advanced and laser class 1
  • Models with coaxial optics for polarized retroreflective, contrast and

    • luminescence sensors

  • Trimmer or EASY touchTM setting with
  • Remote, Keylock and Delay functions
  • Standard cable or M12 connection with standard NPN or PNP

    • configuration



SKU: DI 1055 Categoría: Etiqueta:

TECHNICAL FEATURES

Detection properties

Nominal sensing distance 1,5m
Sensitivity adjustment Trimmer

Application

Function Principle Polarized retroreflective for clear object
Description Compact square case
Optic position axial
Functions Polarized retroreflective for clear object

Outputs

Output type PNP NO+NC
Output Function NO+NC
Response time 500µs

Electrical data

Operating Voltage 10…30VDC
No-Load supply current ≤ 40mA
Load current ≤100mA
Output voltage drop ≤2V@Iload=100mA
Max ripple content ≤2 Vpp
LED indicators Yellow (status output), Green (stability)
Short-circuit protection YES
Reverse Polarity Protection Yes
Emission LED Red
Interference to external light according to EN 60947-5-2 : 2020
Impulsive Overvoltage Protection Yes
Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
Contact resistance 500 Vac 1 min., between electronics and housing

Mechanical data

Dimensions 15X50X50
Housing Material ABS/PMMA
Connections 2m cable
Active Head Material PMMA
Storage temperature – 25°C…+70°C
Material
Diameter/Dimension Cubic

Test/Approvals

Approvals CE cULus
Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)

Generical Data

Dimensions 15X50X50
Operating Temperature – 25°C…+ 55°C (Without freeze)
Mechanical Protection IP67
Marca
