S110 GETEC

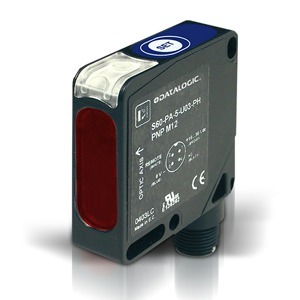

S60-PA-2-W08-PH Sensor de Tacas

$374.414 IVA Incluido - Precio valido solo para compra web y retiro en tienda - Sujeto a confirmación - Foto referencial

Disponibilidad: Hay existencias

EXTENDED RANGE OF STANDARD «ONE FOR ALL» PHOTOELECTRIC COMPACT SENSORS

  • Complete range of optic functions, basic, advanced and laser class 1
  • Models with coaxial optics for polarized retroreflective, contrast and

    • luminescence sensors

  • Trimmer or EASY touchTM setting with
  • Remote, Keylock and Delay functions
  • Standard cable or M12 connection with standard NPN or PNP

    • configuration



SKU: DI 1111 Categoría: Etiqueta:

TECHNICAL FEATURES

Detection properties

Nominal sensing distance 20mm
Sensitivity adjustment Teach-in

Application

Function Principle Contrast mark detection
Description Compact square case
Optic position axial
Functions Contrast mark detection

Outputs

Output type PNP L/D selectable
Output Function L/D selectable
Switching frequency 5Khz
Response time 100µs (5kHz)

Electrical data

Operating Voltage 10…30VDC
No-Load supply current ≤ 40mA
Load current ≤100mA
Output voltage drop ≤2V@Iload=100mA
Max ripple content ≤2 Vpp
LED indicators Yellow (status output) Green/red READY/ERROR LED
Short-circuit protection YES
Reverse Polarity Protection Yes
Emission LED white
Interference to external light according to EN 60947-5-2 : 2020
Impulsive Overvoltage Protection Yes
Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
Contact resistance 500 Vac 1 min., between electronics and housing

Mechanical data

Dimensions 15X50X50
Housing Material ABS/PMMA
Connections 2m cable
Active Head Material PMMA
Storage temperature – 25°C…+70°C
Material
Diameter/Dimension Cubic

Test/Approvals

Approvals CE cULus
Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)

Generical Data

Dimensions 15X50X50
Operating Temperature – 25°C…+ 55°C (Without freeze)
Mechanical Protection IP67
