DI201530 GETEC

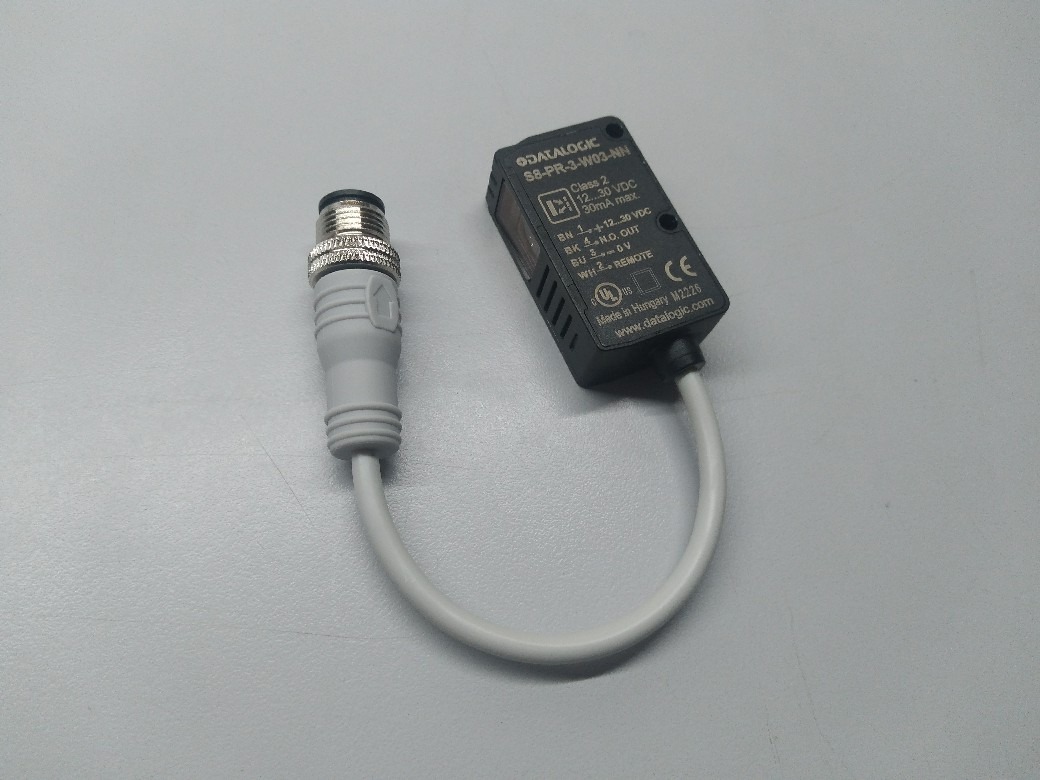

S8-PR-3-W03-NN Seosor Contraste Tacas

$177.279 IVA Incluido - Precio valido solo para compra web y retiro en tienda - Sujeto a confirmación - Foto referencial

Disponibilidad: Hay existencias

COMPACT SIZE AND HIGH PERFORMANCE FOR THE MOST CHALLENGING DETECTION APPLICATIONS LINKED TO YOUR INDUSTRY 4.0 APPLICATIONS

  • Compact dimensions (14x42x25 mm)
  • Background suppression for transparent and shiny objects
  • Contrast sensors up to 25 kHz switching frequency
  • Extremely focused spot, under 1 mm (LASER model)
  • Very high resolution LASER models
  • INOX AISI 316L model
  • Extended IO-Link parametrization with counter
  • All output fully PNP/NPN/PP IO-Link configurable
  • IO-link COM2
  • IO-Link dual channel with no jitter addition



SKU: DI 1530 Categoría: Etiqueta:

TECHNICAL FEATURES

Detection properties

Nominal sensing distance 10mm
Sensitivity adjustment Teach-in

Application

Function Principle Contrast mark detection
Description Compact slim case
Optic position Radial 90°
Functions Contrast mark detection

Outputs

Output type NPN L/D Selectable
Output Function L/D Selectable
Response time 0,05 (10kHz)

Electrical data

Operating Voltage 12…30VDC
No-Load supply current ≤ 30mA
Output voltage drop ≤2V@Iload=100mA
LED indicators Yellow (status output) or (output/alarm) Green (powerON)
Short-circuit protection YES
Reverse Polarity Protection Yes
Emission LED RGB
Interference to external light according to EN 60947-5-2 : 2020
Impulsive Overvoltage Protection Yes
Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
Contact resistance 500 Vac 1 min., between electronics and housing

Mechanical data

Dimensions 14x43x25
Housing Material ABS(Housing), PMMA (Optics)
Connections 150mm PVC cable + M12 plug
Active Head Material PMMA
Storage temperature – 25°C…+70°C
Material Plastic – ABS / PMMA
Diameter/Dimension Cubic

Test/Approvals

Approvals CE cULus
Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)

Generical Data

Dimensions 14x43x25
Operating Temperature – 25°C…+ 55°C (Without freeze)
Mechanical Protection IP67
