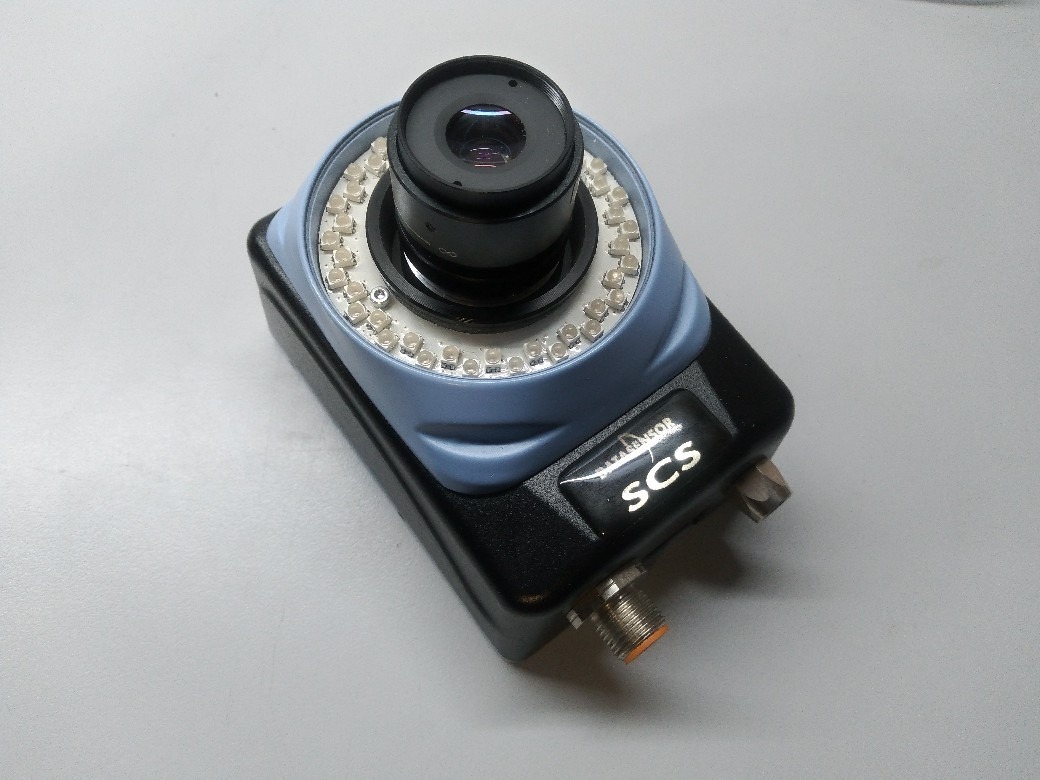

DATASENSOR SCS1 Technical Data
- Power supply: 24 Vdc ± 10%
- Ripple: 2 Vpp max
- Consumption: 120 mA at 24 Vdc
- Integrated illuminator: ring illuminator, continuous red light
- Output type: 2 PNP – NO
- Output current: 100 mA max
- Saturation voltage: 2 V
- Serial interface:
-
- RS232 version, (115200 baud rate)
- RS485 version, (115200 baud rate)
- Digital inputs: 2 digital input version (0/24 Vdc)
- Auxiliary input: trigger signal
- Network interface: Ethernet 10/100 Mbs
- Image sensor:
-
- CMOS 6.61mmx4.97mm
- 640×480 pixels resolution (VGA)
- 9.9 µm pixel dimensión
- Lenses: focal 12 mm CS-mount or C-mount with ring adapter
- Shutter: electronic global shutter
- Acquisition time: 6 ms aprox. (full frame VGA 640×480)
- Setting:
- SET push-button
- + and – push-buttons
- auxiliary PC graphic user interface supplied
- Indicators:
-
- 4 digit display
- 3 green LEDs
- 1 yellow OUTPUT LED
- Connections:
- RJ45 Ethernet connection
- M12 8-pole I/O connector
- M8 4-pole external light connector
- Electronic protection: class 2
- Mechanical protection: IP40
- Protection devices: A, B
- Housing material: Aluminium alloy
- Weight: 300 g without illuminator
- 385 g with integrated illuminator
- Operating temperature: -10 … +55°C
- Storage temperature: -25 … +70°C
