| Nominal sensing distance | 120mm | |
| minimum detectable object | 0,80mm | |
| Sensitivity adjustment | Trimmer | |
Application
| Function Principle | Fork for small object detection | |

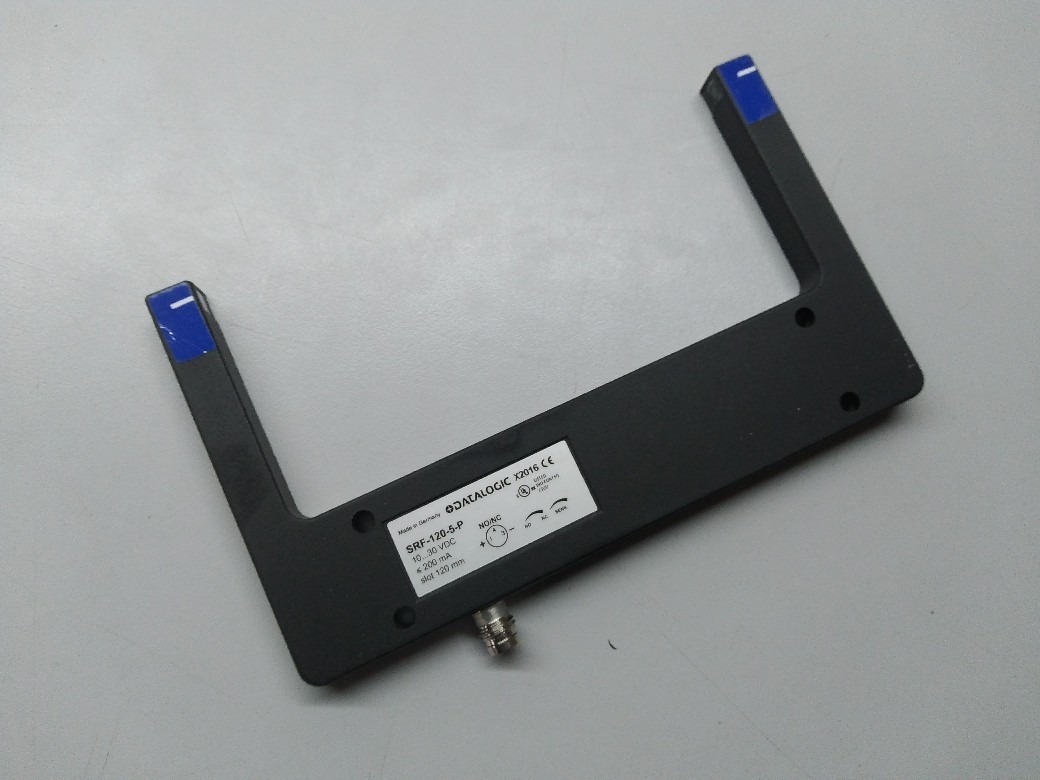

| Description | Slim case – fork slot 120×54 mm | |
| Functions | Fork for small object detection | |
Outputs
| Output type | PNP L/D selectable | |
| Output Function | L/D selectable | |
| Switching frequency | 1,5kHz | |
| Response time | 0,33 | |
Electrical data
| Operating Voltage | 10…30VDC | |
| No-Load supply current | ≤ 35mA | |
| Load current | ≤200mA | |
| Output voltage drop | ≤ 3V | |
| LED indicators | yellow OUTPUT LED, green STABILITY LED | |
| Emission | LED Red | |
| Interference to external light | according to EN 60947-5-2 : 2020 | |
Mechanical data
| Dimensions | 10x140x84 | |
| Housing Material | Metal – Gd-Zn / Glass | |
| Connections | M8 plug 4pin | |
| Storage temperature | – 20°C…+70°C | |
| Material | ||
Test/Approvals
| Approvals | CE cULus | |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) | |
Generical Data
| Dimensions | 10x140x84 | |
| Operating Temperature | – 10°C…+ 60°C (Without freeze) | |
| Mechanical Protection | IP67 | |
