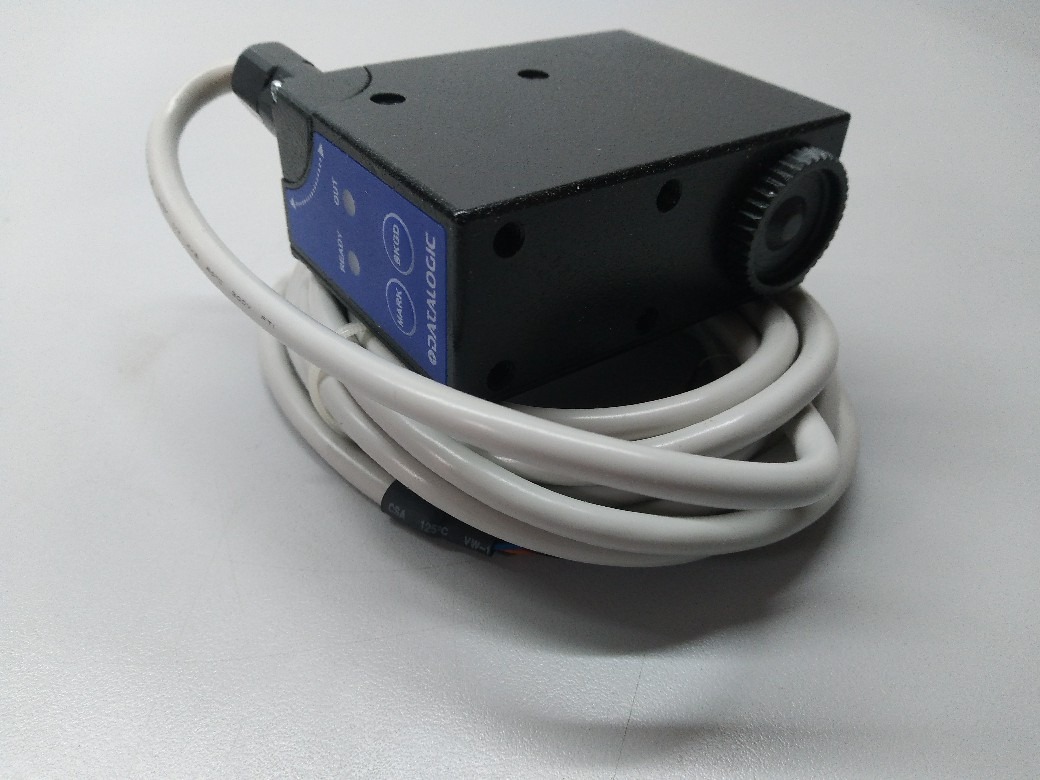

TECHNICAL FEATURES
Detection properties
| Nominal sensing distance | 9mm | |
| Spot dimension | 1,5 x 5mm | |
| Sensitivity adjustment | Teach-in | |
Application
| Function Principle | Contrast mark detection | |
| Description | Standard case – vertical spot | |
| Optic position | Radial 90° | |
| Functions | Contrast mark detection | |
Outputs
| Output type | NPN L/D Selectable | |
| Output Function | L/D Selectable | |
| Response time | 0,05 (10kHz) | |
Electrical data
| Operating Voltage | 10…30VDC | |
| No-Load supply current | ≤ 80mA | |
| Output voltage drop | ≤1V | |
| LED indicators | red OUTPUT greenREADY | |
| Short-circuit protection | YES | |
| Reverse Polarity Protection | Yes | |
| Emission | LED RGB | |
| Interference to external light | according to EN 60947-5-2 : 2020 | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | 31x58x82 | |
| Housing Material | Metal – Zamak | |
| Connections | 2m cable | |
| Active Head Material | Glass | |
| Storage temperature | – 20°C…+70°C | |
| Material | ||
| Diameter/Dimension | Cubic | |
Test/Approvals
| Approvals | CE cULus | |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) | |
Generical Data
| Dimensions | 31x58x82 | |
| Operating Temperature | -10°C … 55°C | |
| Mechanical Protection | IP67 | |
